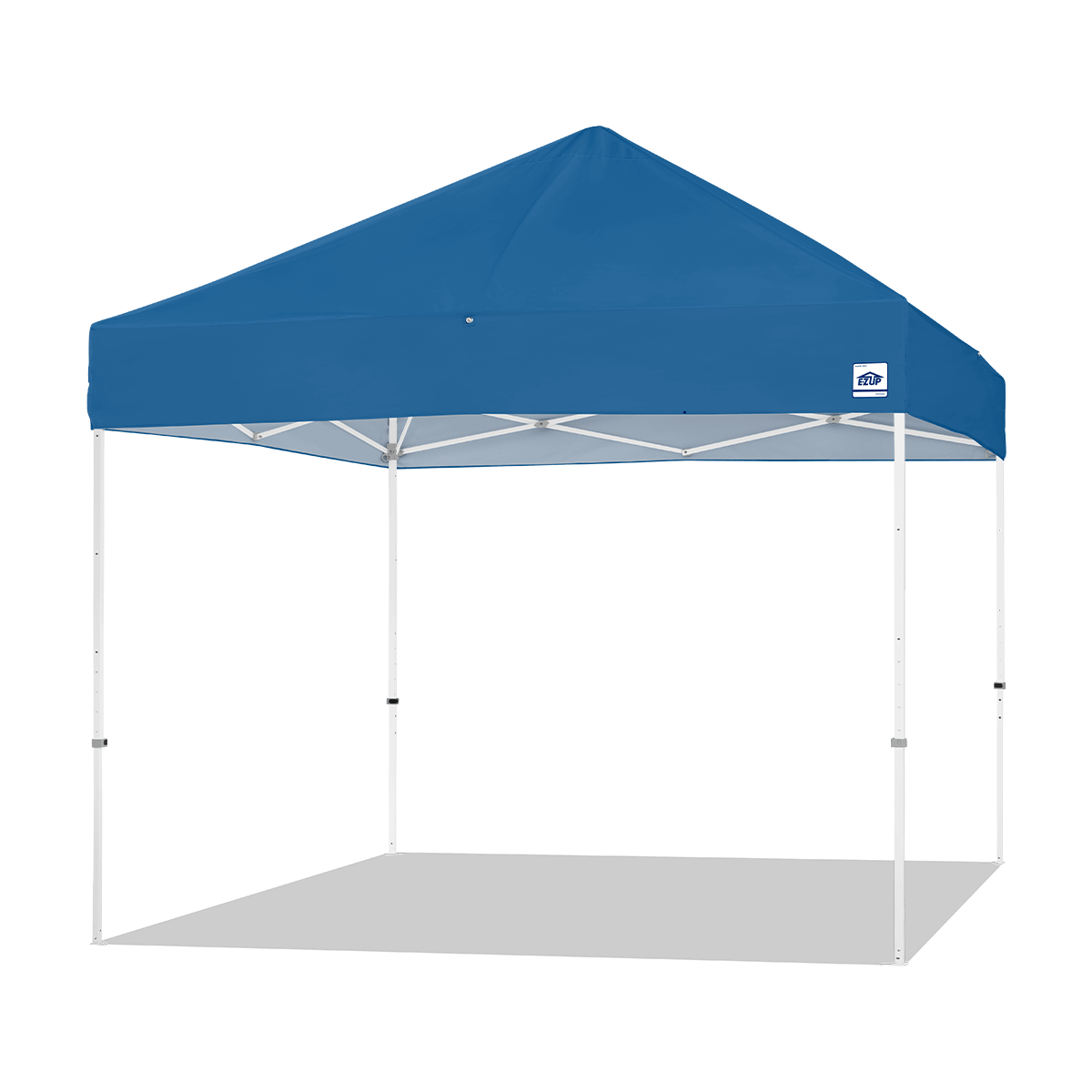

Eclipse™ MAX 10' x 10' Canopy

818
Eclipse™ MAX 10' x 10' Canopy
SKUeclipse_max_canopy
Price $818.00

Elevated Comfort & Protection – Pro-Level Performance for All Conditions

The Eclipse™ MAX combines wide-open headroom with reinforced weather protection, creating a more comfortable and secure space to work under in any condition.

  • Frame Material- High Strength 1015 Steel
  • Top Material- Duralon® PRO / 500D Poly
  • 10’ x 10’ footprint / 100 sq ft coverage area
  • 7 Year Limited Warranty
- +
Customize
- +
Customize
Price $818.00

Looking For Full Coverage Custom Graphics?

Our expert team will provide a
FREE rendition. Get A Quote

Free Shipping

Free standard shipping on qualified orders

Guarantee

100% Satisfaction Guarantee

Availability:In stock
Only %1 left

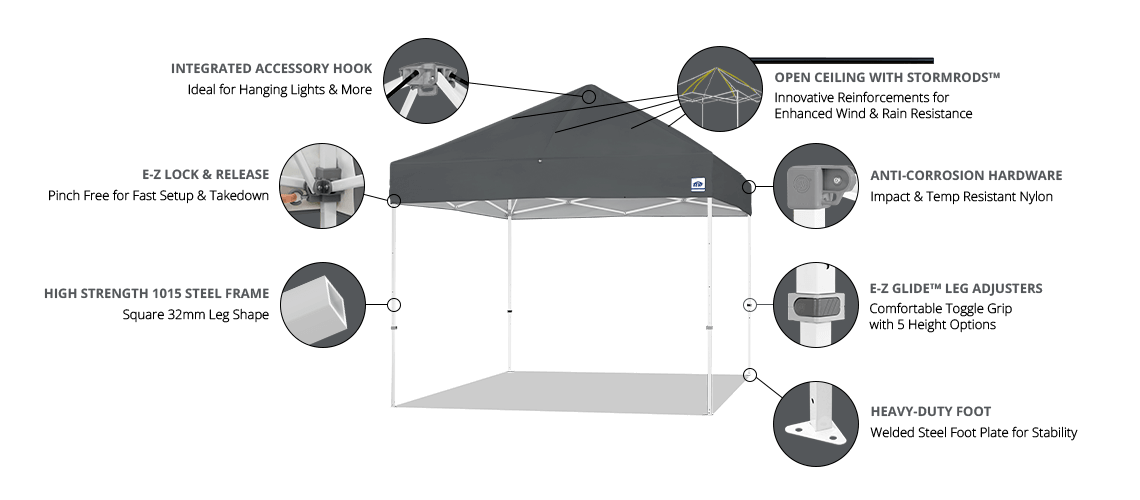

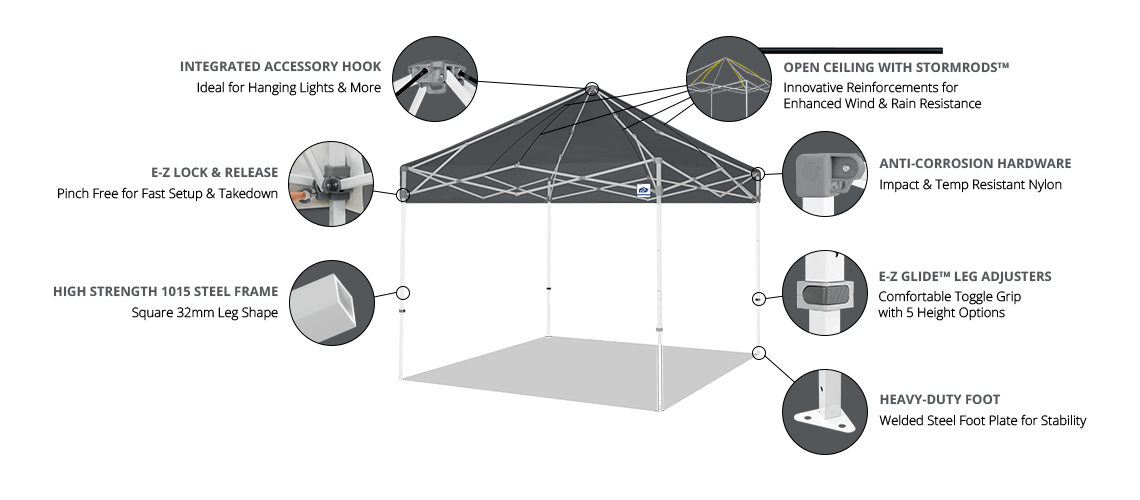

Technology
Eclipse Technology

Purpose-Built for the Toughest Conditions

Details

Product Details

Eclipse™ MAX takes professional-grade shelter to the next level with an open-ceiling design that enhances interior space and comfort. StormRod™ technology reinforces the canopy top to resist buckling in tough weather, ensuring your canopy stays secure in tough conditions. Built on the trusted Eclipse™ platform, the MAX version delivers the same proven reliability with upgraded comfort and enhanced structural strength—making it the ideal choice for professionals who work through every season.

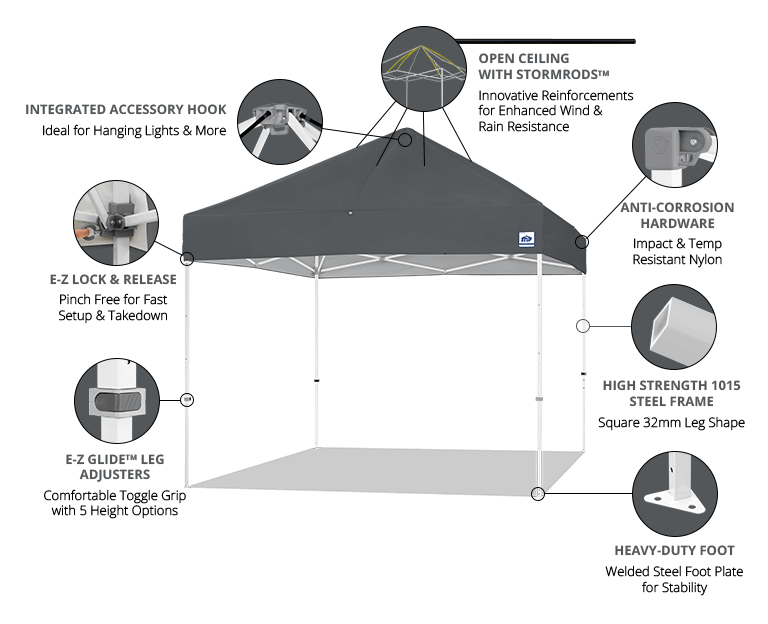

Key Features

  • Wide Open Interior – Open-ceiling design eliminates cross-bracing to provide a spacious feel and increased comfort with up to 11 feet of head clearance.

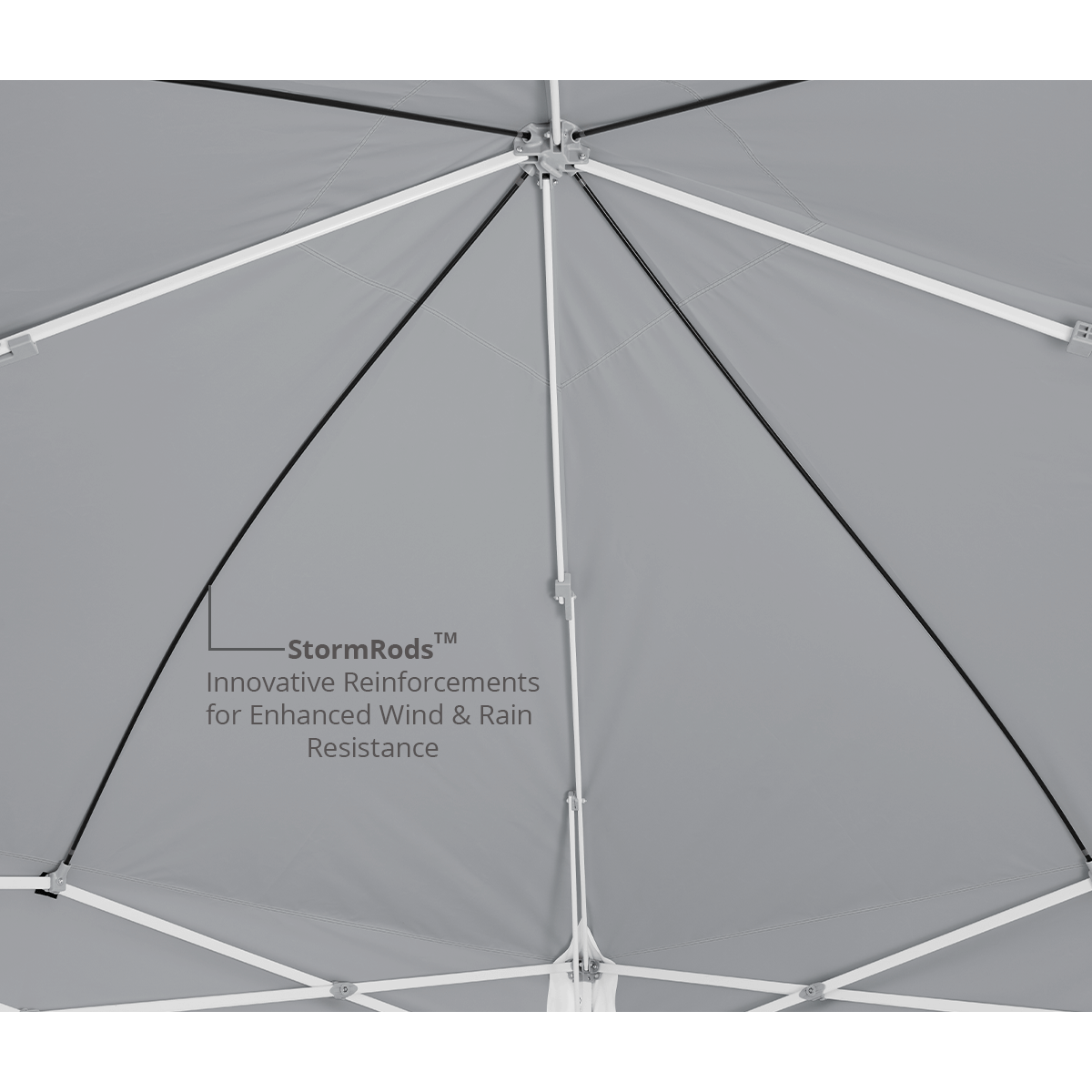

  • StormRod™ Reinforcements – Patented canopy supports reinforce the frame and top to help deflect wind, rain, and snow for reliable performance in unpredictable weather.
  • DualCore™ Reinforced Steel Frame – Crafted from High Strength 1015 Steel with internal leg reinforcements to deliver long-term strength and dependable support for daily use.
  • Weather-Resistant Fabric – Fitted with a premium Duralon® PRO top for long-lasting weather resistance and a professional appearance.

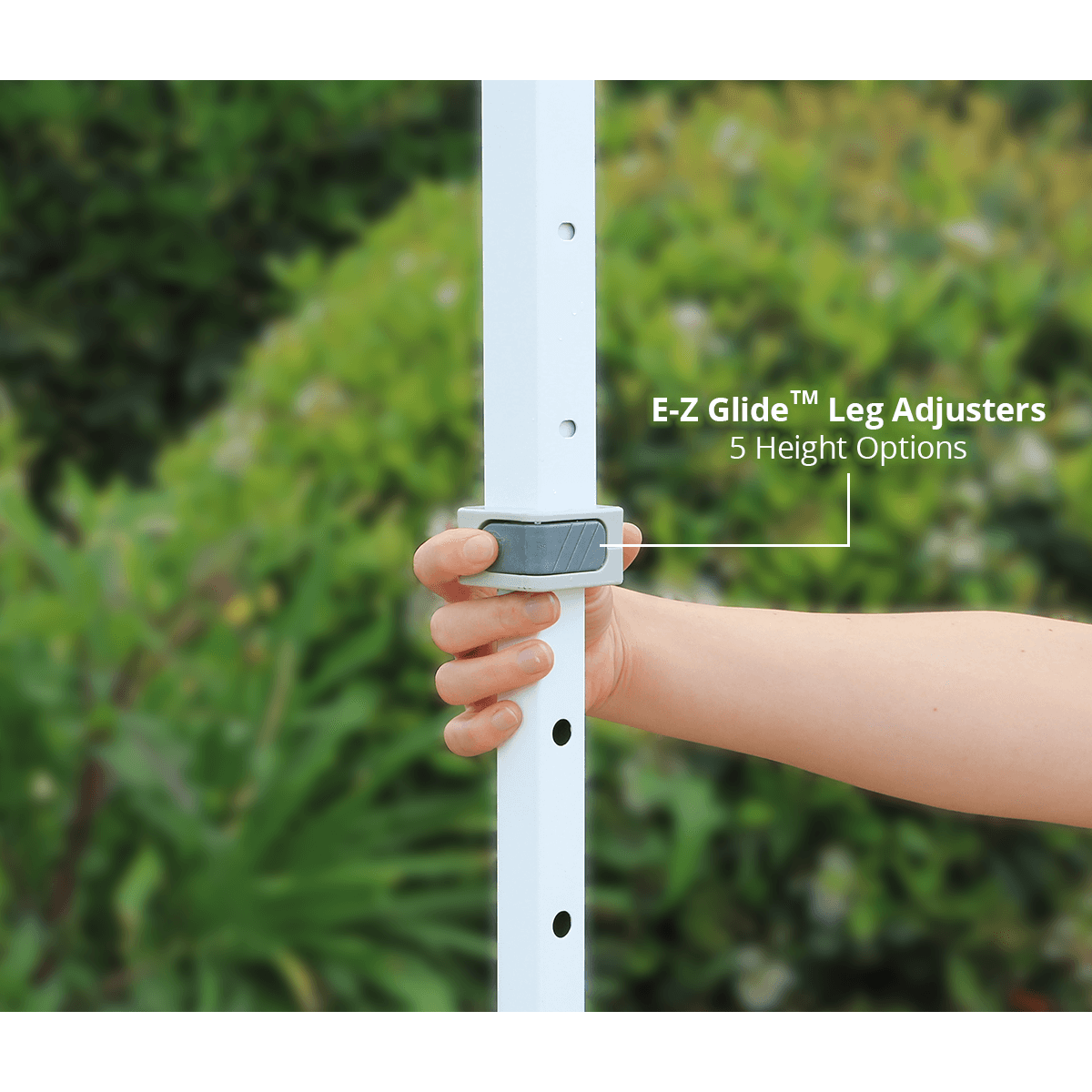

  • E-Z Glide™ Leg Adjusters – Engineered with debris drainage channels to slide easily in sand, dirt, or gravel for smooth height adjustment in any environment.
  • Impact Resistant Components – Constructed from High-Impact Nylon with anti-corrosion hardware to maintain strength and integrity in tough field conditions.

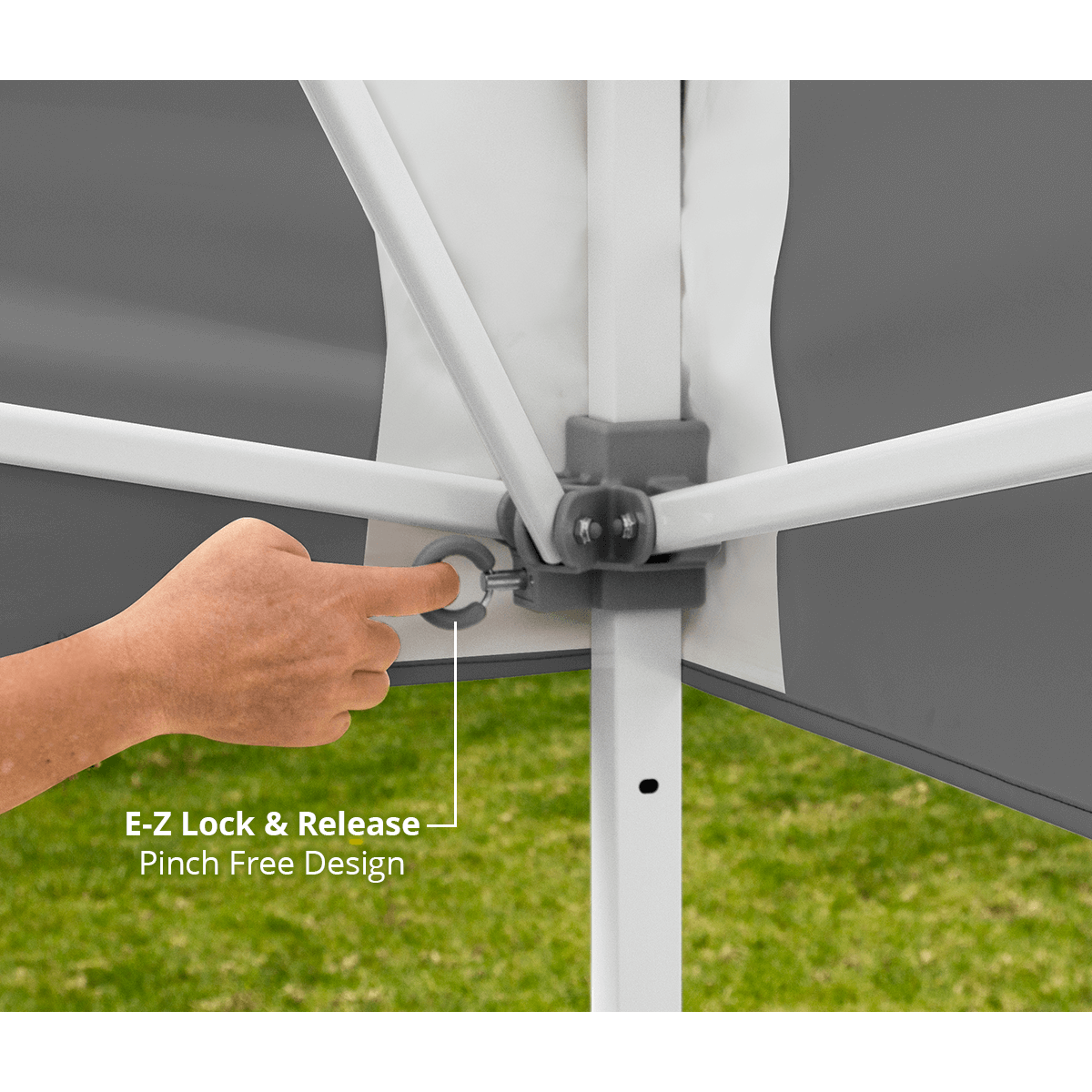

  • No-Pinch E-Z Lock & Release Corners – Quick-deploy system allows for fast, safe setup and takedown without strain or pinching.
Specifications
More Information
Category Rating Heavy Duty
Canopy Size 10 x 10
Coverage Area 100 sq ft
Weight 67 Lbs. (30.3 Kg)

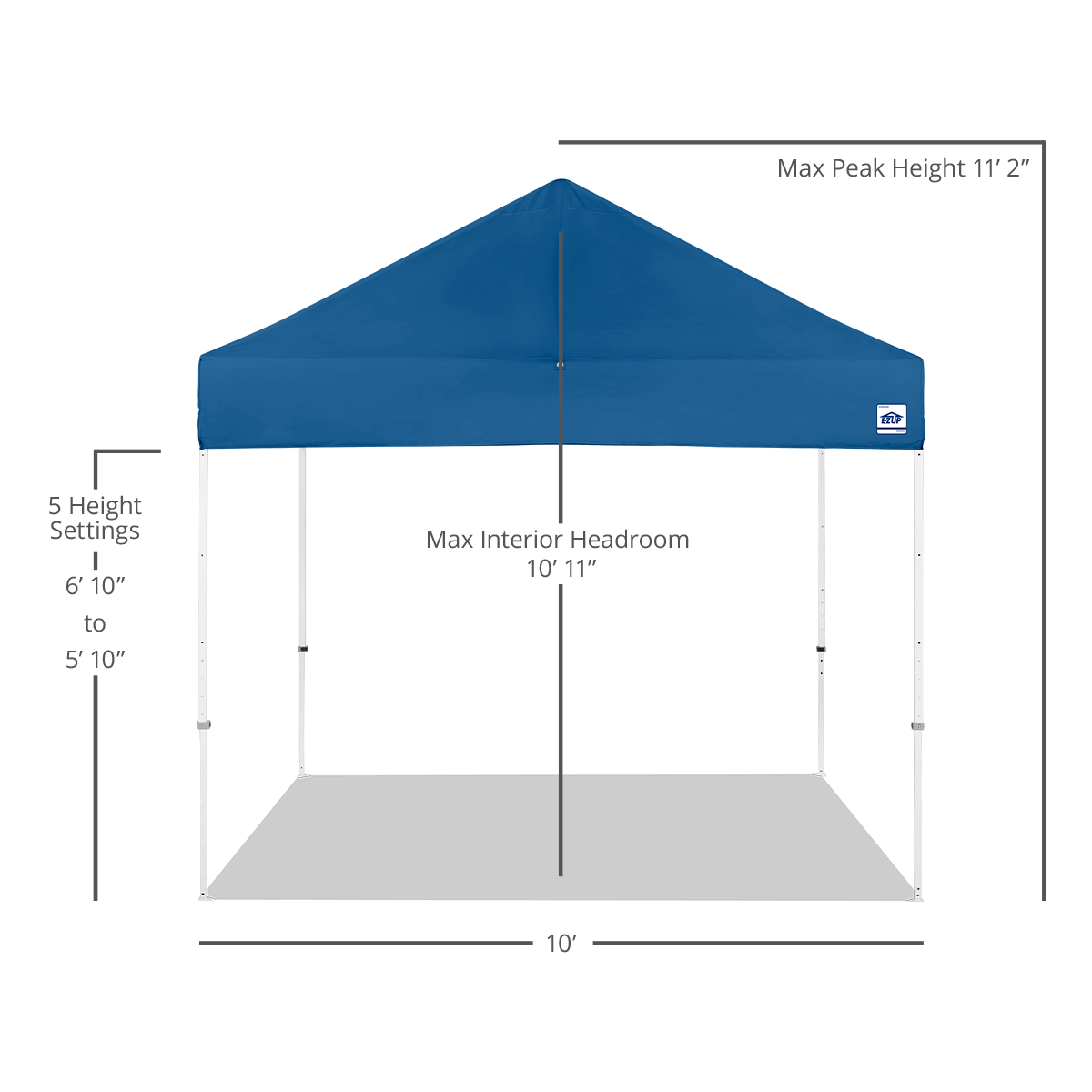

Dimensions 10' L x 10' W x 11' 2" H (3 m x 3 m x 3.4 m)

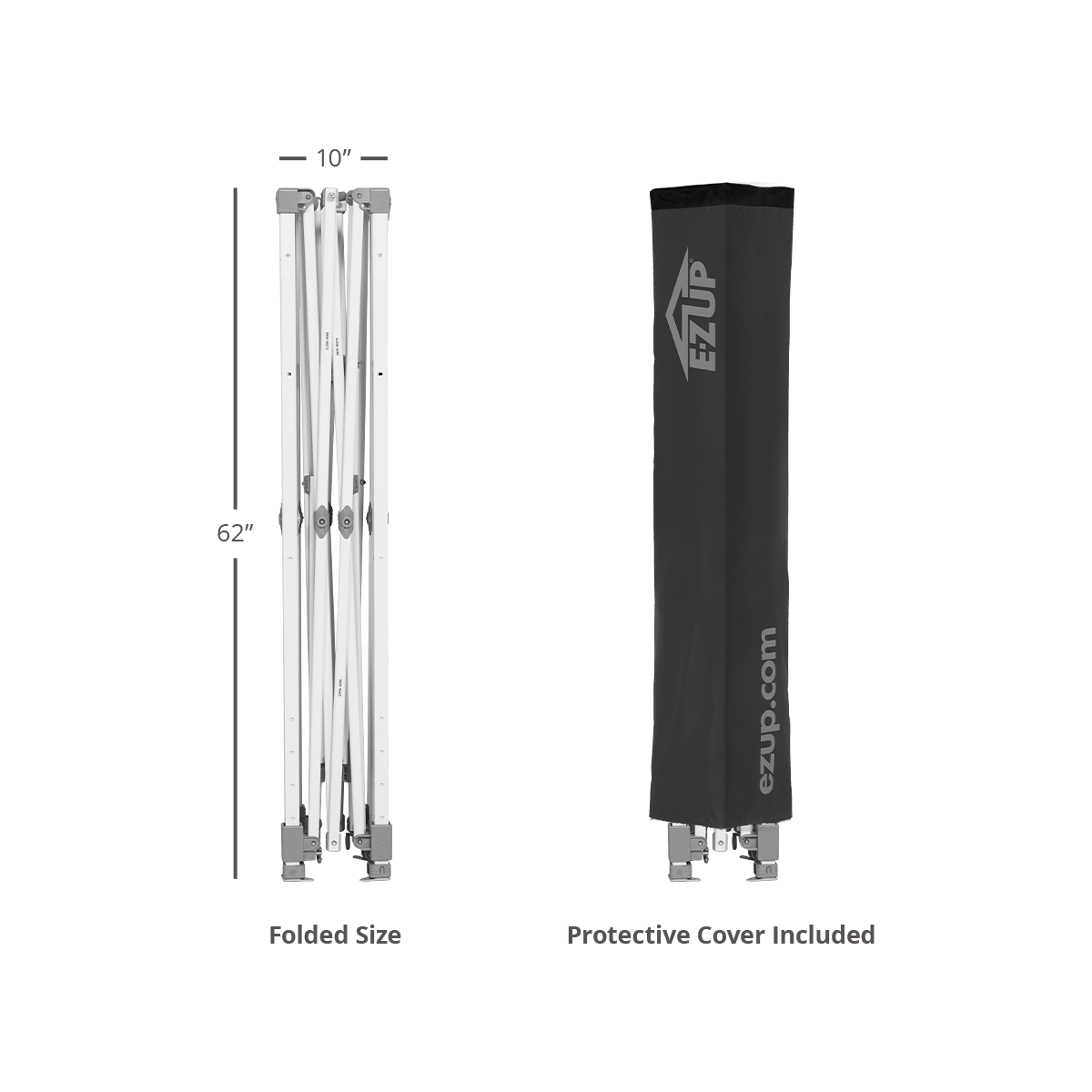

Folded Length 62" x 11" x 11" (158 cm x 28 cm x 28 cm)
Maximum Peak Height 11' 2" (3.4 m)
Maximum Headroom 10' 11" (3.3 m)
Valance Clearance 6' 10" (2.1 m)
Height Settings
  • 5 Height Options
  • 3" intervals (7.6 cm)
Frame Material Steel
Frame Description High Strength 1015 Steel
Frame Finish Durable Powder Coat Finish
Leg Reinforcement DualCore™ Reinforced Tubing
Frame Geometry Straight Leg
Outer Leg Size / Shape 32mm / Square
Ceiling Design Open-Ceiling w/ StormRods™

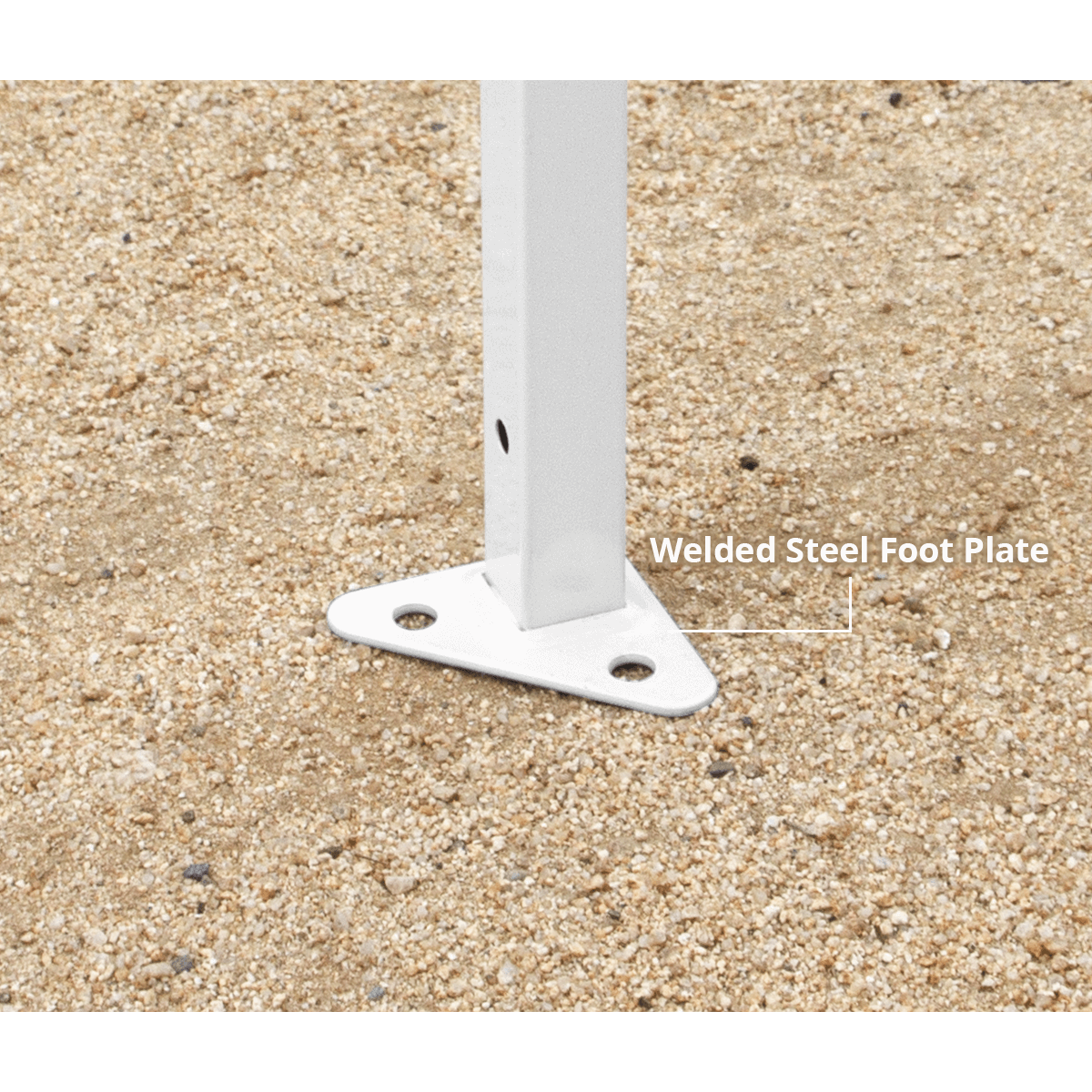

Footpad Welded Steel Plate
Top Material Duralon® PRO - 500D Polyester
Top Description Duralon® PRO - 500D Polyester
Custom Graphics Stock Colors
Water-Resistant Stitching Fully Bound Seams + Anti-Wick Thread
Vented Top Non Vented
Valance Depth 14.5" / 37 cm
Fabric Treatments Ultraviolet (UV) Inhibitor
Durable Water Repellant (DWR)
Anti-Mold/Mildew
Height Adjustment E-Z Glide™ Leg Adjusters
Storage & Transport Included: Cover Bag
Optional: Roller Bag
Anchoring Options Optional: Weight Plates, Weight Bags, Heavy-Duty Stake Kit
Weather Resistance Level 4
Wind Stability Level 3
UV Protection UPF 50+
Fire Resistance Rating CPAI-84
NFPA-701
CAN/ULC-S109
DIN 4102-1 Class B1
EN 13501-1 Class B-s1, d0
Fire Certification CPAI-84 and NFPA-701, CAN/ULC-S109 Fire-Resistance Requirements and California Fire Certified Flame Retardant
Usage Frequency Designed for Daily Use
Warranty 7 Years Limited
Product Includes
  • Eclipse™ MAX Frame
  • (4) Flex Rods
  • Fabric Top
  • Cover Bag
Available Accessories
  • Deluxe Wide-Trax™ Roller Bag
  • E-Z Event System
  • Event Lights
  • Deluxe Weight Bags
  • Water Weight Bags
  • Heavy-Duty Stake Kit
  • Weight Plates
  • Sidewalls & Railskirts
  • Flags
Downloads Spec Sheet
Owners Manual
Support

Call or Chat with Us

800-457-4233

Chat now

Sales and Custom Graphics Departments

Mon-Fri / 6am-4:30pm PT


Parts and Warranty

Mon-Fri / 8:00am-4:30pm PT

Need Help With Your Design?

  1. Get a Quote – Our expert team will design your shelter and provide you a FREE rendition. Complete the form or email us to get started.
  2. Download Our Templates – Start with our blank templates to help you customize your shelter.
  3. Email Us Your Artwork – Send to artonline@ezup.com. We accept all types of artwork files. For more information view our artwork requirements.

Email Customer Care

Get in touch with us any time, a Specialist will respond to your email as soon as possible.

*
*
*

Features
Eclipse Features

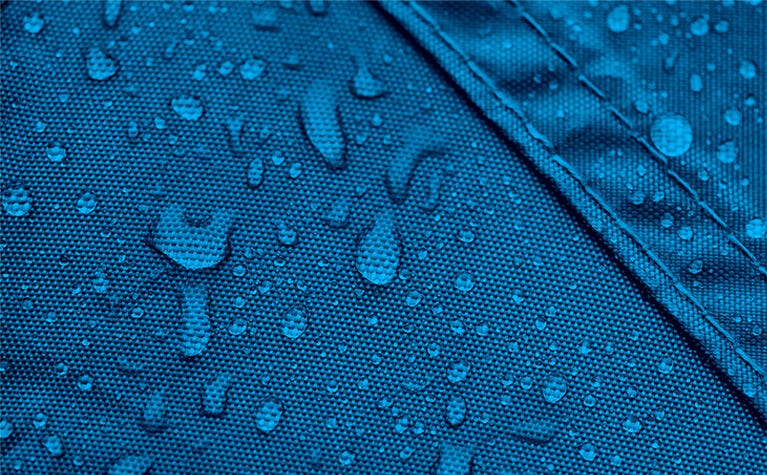

Professional Grade Fabric

Premium Duralon® PRO Top fitted with weather-resistant fabric for a long-lasting professional appearance

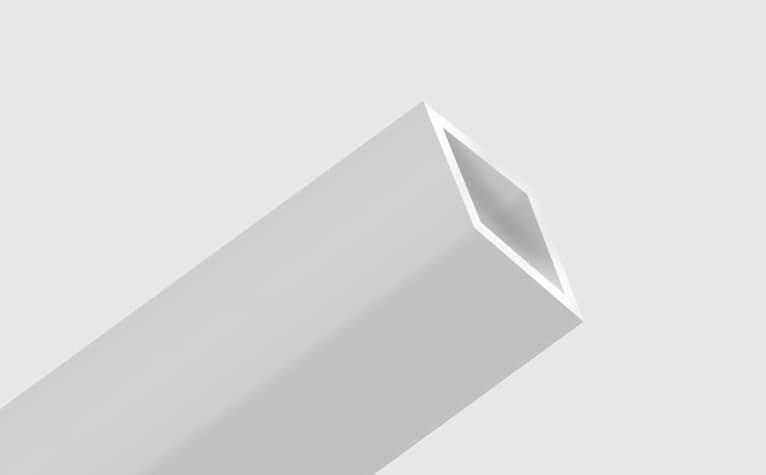

DualCore™ Reinforced Steel Frame

Crafted from High Strength 1015 Steel with internal leg reinforcements to deliver long-term strength and dependable support for daily use.

Eclipse Features
Eclipse Features

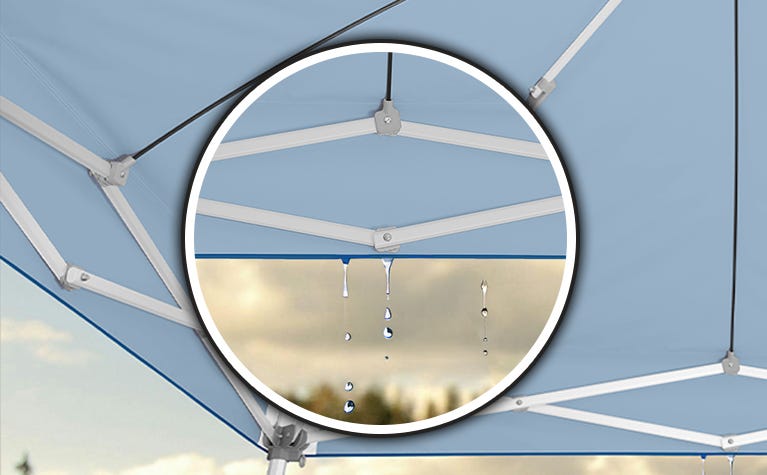

Built to Withstand the Harshest Conditions

Dome-like geometry with Dynamic Flex Rods that repels rain and snow minimizes saturation and moisture pooling
